Drilling down into Layouts...

[ONiX]

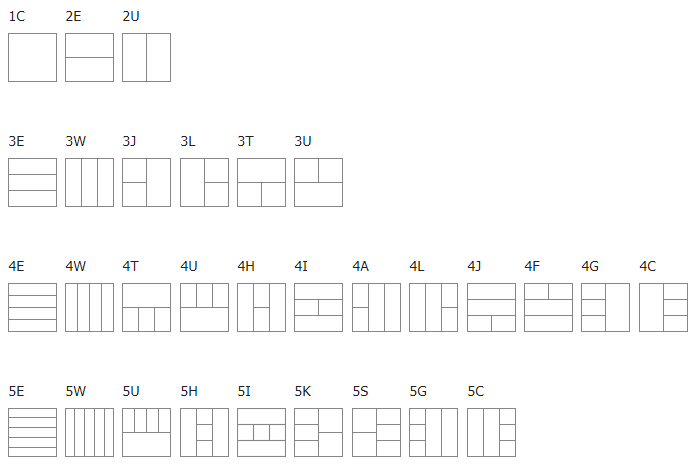

Add TDashFramework on your TForm, select a layout from the chart:

(C) 2026 by Brain Patchwork DX, LLC and DHX.

Screenshot 2026-10-08 015742.png (7.78 KiB) Viewed 23439 times

Everything paints the following ways (at Design time!)...

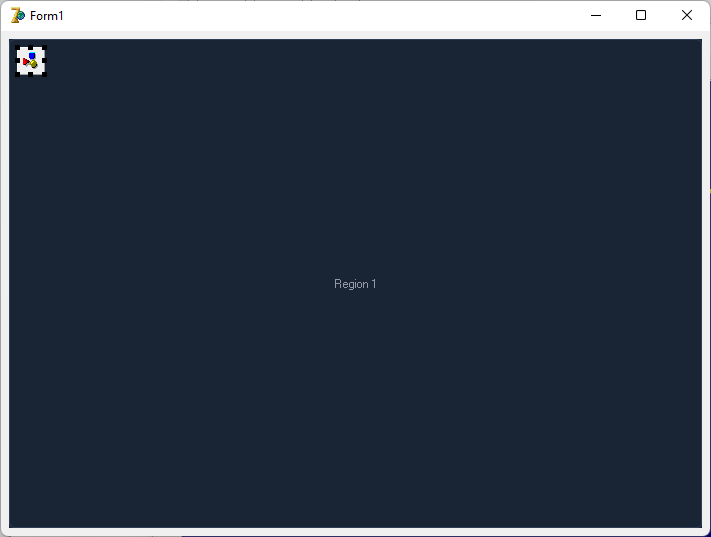

fl1C:

(C) 2026 by Brain Patchwork DX, LLC.

Screenshot 2026-10-08 180026.png (5.57 KiB) Viewed 23439 times

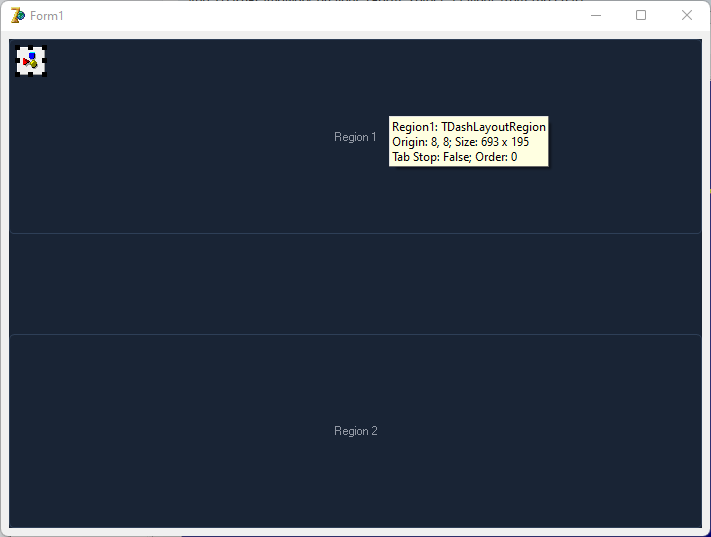

fl2E:

(C) 2026 by Brain Patchwork DX, LLC.

Screenshot 2026-10-08 180450.png (10.39 KiB) Viewed 23428 times

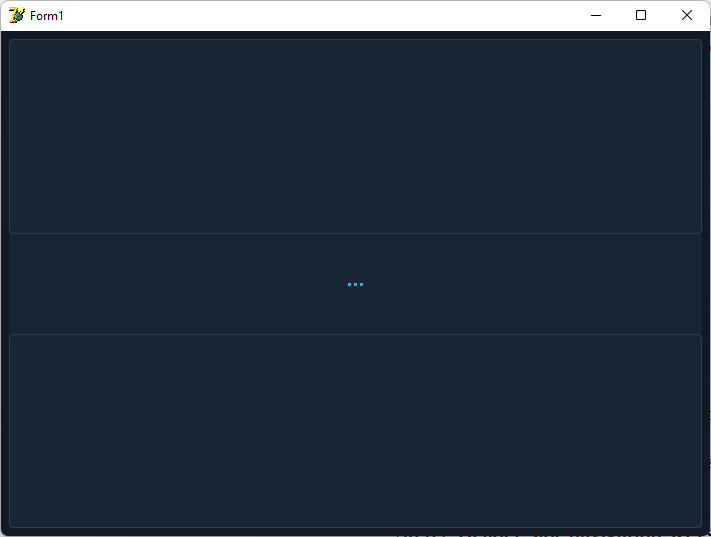

Pressing F9 to run the above, so you can see the TDashSplitter...

(C) 2026 by Brain Patchwork DX, LLC.

Screenshot 2026-10-09 172030.png (5.95 KiB) Viewed 20481 times

[ONiX]

Controlling your splitter(s)...

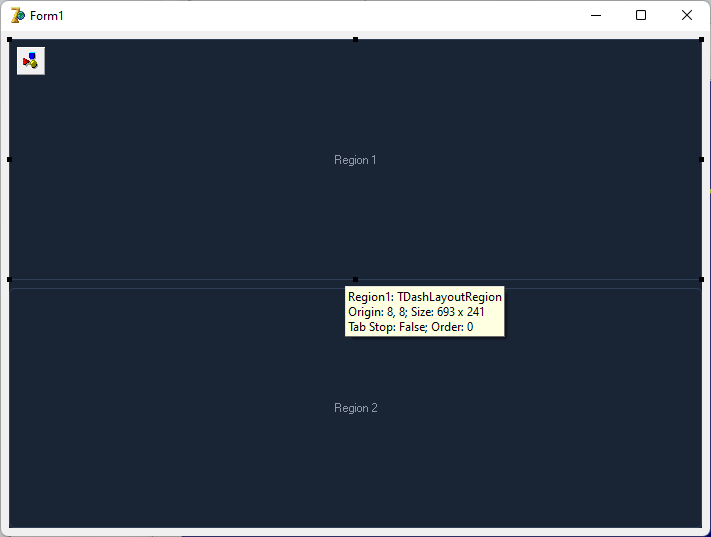

By clicking on the space between the regions, you can select design-time settings for the splitter:

(C) 2926 by Brain Patchwork DX, LLC.

Screenshot 2026-10-09 181859.png (9.65 KiB) Viewed 20359 times

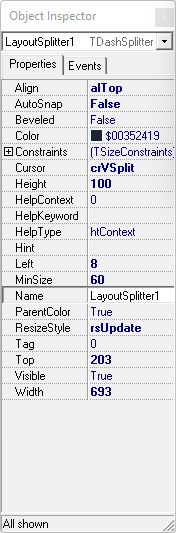

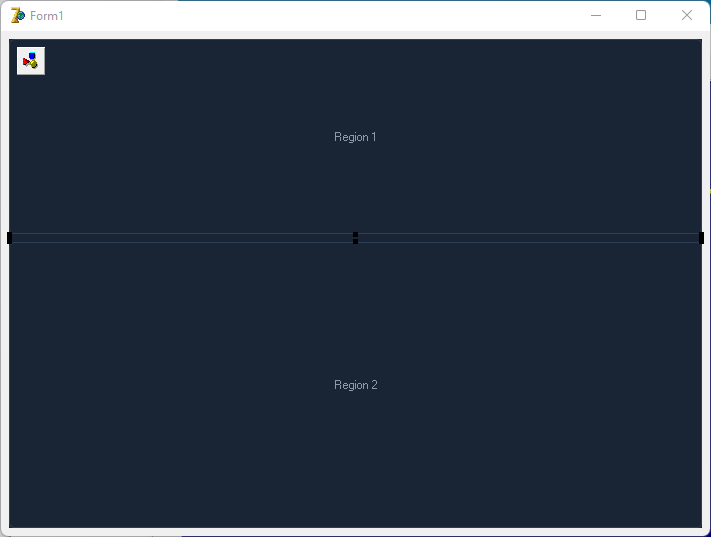

Changing the height (in this case) from 100 to 8...

(C) 2926 by Brain Patchwork DX, LLC.

Screenshot 2026-10-09 182241.png (5.87 KiB) Viewed 20359 times

Of course if you want you can click on Region 1, and manually make its height bigger. (Or use your mouse to grab the south edge grabber to drag it larger). You actually have total control of the layouts during design time.

(C) 2926 by Brain Patchwork DX, LLC.

Screenshot 2026-10-09 182800.png (9.83 KiB) Viewed 20357 times
